Caterpillar 3516E Tier 4 Final engine - From a napkin sketch to your engine room
by Caterpillar Marine 15 Dec 2021 22:25 GMT
It started on a napkin, progressed to a sheet of notebook paper and was first to market certified to U.S. Environmental Protection Agency (EPA) Tier 4 Final and International Maritime Organization (IMO) Tier III emissions standards. And it was created in the midst of a whirlwind journey that took Caterpillar engineers aboard more than 50 vessels and into dozens of shipyards worldwide.
"It" is Caterpillar's combination of a fuel-efficiency-optimized engine and a selective catalytic reduction (SCR) aftertreatment system — a solution that not only reduces NOx emissions, but also can lower a customer's owning and operating costs in the process. More than 150 Cat® Tier 4 Final/IMO Tier III marine engines are now at work aboard vessels worldwide.
"We literally started with a white sheet of paper and designed it from the bottom up as a marine product," says Tom Manning, the design engineer responsible for marine aftertreatment projects. "We had some existing solutions in mind we thought might work, but decided to go out into the marine marketplace to get a better understanding of exactly what our customers needed."
Different customers, different requirements
Those customers included more than just end users. In designing a Tier 4 Final and IMO Tier III solution, Caterpillar Marine engineers had to keep in mind the requirements of ship builders in addition to ship owners and operators.
"Different customers value different things," Manning says. "The builder focuses on building costs and construction, while the buyer focuses on long-term operating costs. We had to figure out what was going to deliver the best solution for all parties."
To do so, Manning and other engineers on the team spent nearly a year on the road, in the air and at sea — visiting shipyards, talking to marine architects, boarding vessels with customers and studying competitive aftertreatment systems. They focused first on smaller vessels, reasoning that any solution that could fit into these space-constrained areas would also work inside a larger vessel.
"It was the most comprehensive new product introduction we've ever done in marine," says Mark Harrison, a regional sales manager for Caterpillar Marine who served as a product definition engineer at the time. "We visited so many different vessels and talked to so many different designers. It was done on a scale I've never seen before."
Manning agrees. "It was really a collaborative effort involving the entire marine industry. We would review and analyze what we learned from one set of customers, then develop a series of deeper, more probing questions to ask during our next round of visits."
From napkin to notebook paper
It was during one of these visits that engineer Rick Jeffs quickly sketched out an idea on a napkin.
"I remember we were sitting at a coffee shop in Vancouver," says Chris Chenette, who was a product value manager at the time and today serves as marine application and installation manager. "There was an 'aha' moment when we realized that routing pipes take up a lot of space in a vessel, so we needed to come up with a way to give the customer flexibility when it comes to routing and flow. You can see that reflected in Rick's initial drawing."

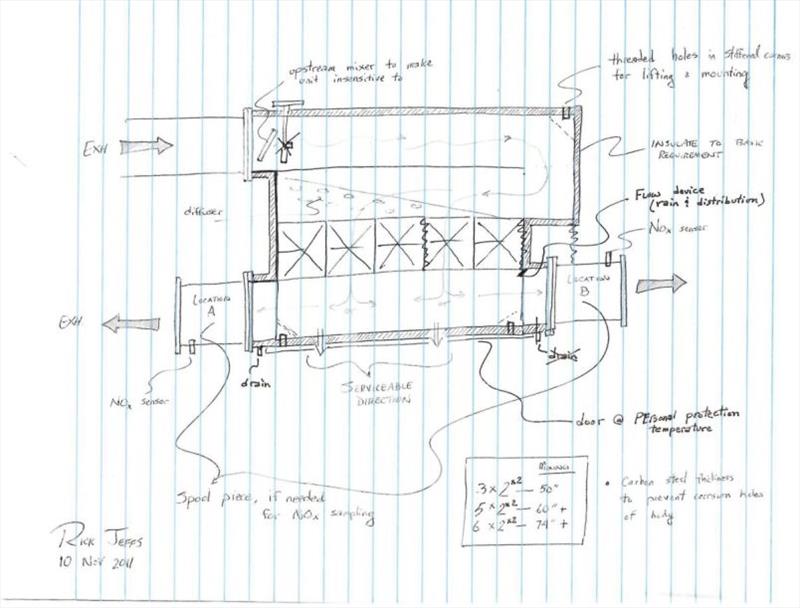

That evening, in his hotel room, Jeffs created a more polished sketch on sheet of notebook paper, and the team began sharing the idea with customers.
"It was a direct result of feedback we received from naval architects," Harrison says. "Rick sketched it out and then we started showing it to other people and asking, 'Do you think this might work?' Basically, we were able to get live feedback from our customers."
Real-world results
That feedback convinced the team they were on the right path. The design evolved over the course of the next few months, but the basic concept remained the same. In May 2014, Caterpillar brought its Tier 4 Final and IMO Tier III marine solution to the market.
"We believe it's the most reliable, simple solution to meet the regulations," Harrison says.
"Customers have the flexibility to install it in the way that works best for their vessels. Maintenance can be done in less than 12 hours — the time a ship might typically be in port. Servicing it doesn't require any special tools or lifting devices, since we learned firsthand how difficult it can be to load equipment on ladders and transport it through narrow passageways."
Even more important, the combination of an optimized engine and the SCR aftertreatment solution helps keep customers' owning and operating costs down.
"To meet past emissions standards, we made changes to the engines, but there was always a trade-off — as NOx went down, fuel consumption went up," Chenette says. "This time, with the SCR solution, we were able to tune the engine more efficiently to reduce fuel consumption and use the aftertreatment system to reduce emissions, while ensuring safe, reliable operation at the same time."
That reduction in fuel consumption should more than offset the additional cost of urea used in the SCR system — reducing customers' fluid costs when compared to previous products.
Six years of success and counting
More than six years after the launch of the first Cat Tier 4 Final marine engines, the original engineering team sees real-world results as validation of the process.
"The impact that we see now years later is that our work resulted in an industry-leading product, thanks to the requirements we gathered and the people we spoke to," Chenette says. "The fuel consumption reduction we expected has held up in the real world. Overall acceptance from the industry has been positive. We really haven't heard any, 'Hey, you should have done it this way instead.'"
That's a big reason why new marine Tier 4 Final platforms soon to be introduced will leverage a similar design philosophy.
"Customers are choosing our solution because it is flexible, versatile, easy to integrate into their vessels and designed with cost savings in mind," Harrison says. "they view the lower fuel consumption and lower owning and operating costs as differentiating factors."
In other words, it's come a long way from a napkin and a blank piece of paper.
The 3516E Tier 4 Final
Tier 4 Final and Cat SCR technology, then, will help conserve natural resources and machine operators' costs at the same time. But there's more to the 3516E than just better emissions.
The 3516E pushes out a max continuous rating of 3385 hp and has been designed with marine operations in mind. The engine is compatible with Safety of Life at Sea (SOLAS) regulations and is Marine Society certified. Among the SOLAS additions are several heat shields, installed around the exhaust manifold, aftercooler and the turbochargers. The heat shields are designed for serviceability, so technicians can get in and out with minimal downtime. Explosion relief valves are also built into the 3516E, which align with Marine Society regulations.
The 3516E also offers a closed crankcase ventilation system option, which allows operators to send emissions back into the engine intake instead of venting them separately out of the vessel.
Several cooling options are available with the 3516E, including a keel cooled option or a plate heat exchanger, which is built with the water's thermal expansion accounted for.
Finally, an electronic oil mist detection system can be incorporated into the 3516E (for engines rated at 2250 bkW or higher), which allows for more reliable and more expedient detection of oil misting.
There are already thousands of 3500 engines operating in marine applications worldwide. More than 26,000, in fact. And with the 3516E Tier 4 Final, Caterpillar continues to show why more vessel owners prefer Cat power solutions to competing options.
Naval architect's input key to Tier 4 final design
As one of the largest, most widely known naval architecture and marine engineering firms in the world — celebrating its 90th anniversary in 2020 — Robert Allan Ltd. is no stranger to being approached by marine engine manufacturers seeking input on their products. But no one's ever come to the Vancouver, Canada-based company as early in the process as Caterpillar did during the development of its U.S. Environmental Protection Agency (EPA) Tier 4 Final solutions.
Like many in the industry, the team at Robert Allan Ltd. was nervous about what meeting marine Tier 4 Final emission regulations might mean for vessel designs with respect to the size of the engine and placement of auxiliary equipment. Though the company designs vessels of all types, it focuses primarily on tugboats and workboats, where space onboard often is at a premium.
"There were a lot of unknowns," says Allan Turner, P.Eng, project manager and mechanical engineer at Robert Allan Ltd. "We understood that SCR [selective catalytic reduction] was going to be the technology utilized, and there was a concern that it was going to involve very large equipment that would have significant design impacts on a tugboat."
So when the Caterpillar Marine team asked for Robert Allan Ltd.'s support in the development of the Tier 4 Final solution — part of a worldwide "listening tour" that took Caterpillar engineers aboard more than 50 vessels and into dozens of shipyards — Turner and his colleagues jumped at the opportunity.

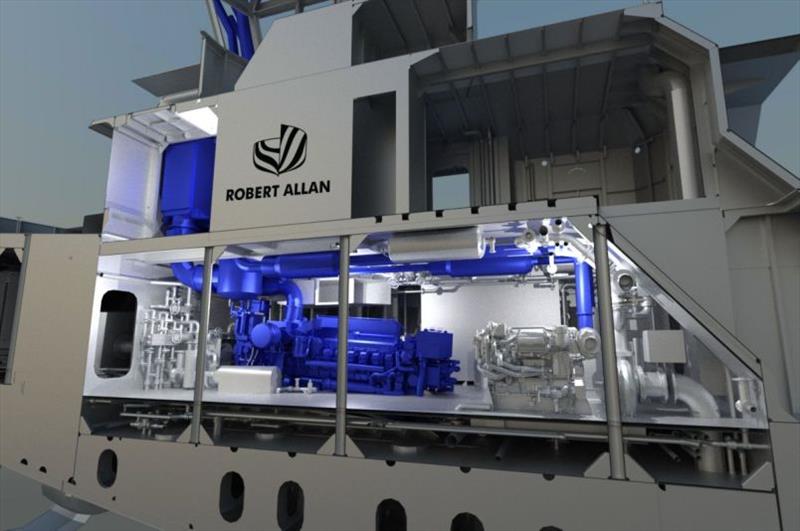

Caterpillar provided a number of engines featuring SCR that had been used in other industries, and the Robert Allan Ltd. team began working to apply them to standard tugboat designs — eventually developing a drawing package for Caterpillar that illustrated the fit of the engines.
"When Caterpillar came to visit, we reviewed these drawings and also went aboard some tugboats in the Vancouver harbor to show them the space constraints," Turner says.
When Caterpillar came to visit, we reviewed these drawings and also went aboard some tugboats in the Vancouver harbor to show them the space constraints," Turner says. "The biggest takeaway was discovering the advantage of having the SCR equipment and the mixing tube combined in a single unit, and the ability of that unit to make either a 90- or 180-degree turn so it could be easily arranged in the vessel."
It was during this visit that Caterpillar engineers sketched out an idea on a napkin that eventually evolved into the final engine design. When those engines were unveiled in 2014 — the first to market certified to U.S. EPA Tier 4 Final standards — Turner was pleased to see much of Robert Allan Ltd.'s feedback incorporated in the final design. Six years on, he's been pleased with the application in the real world, too. Robert Allan Ltd. has designed approximately 40 vessels featuring Cat® marine Tier 4 Final/ IMO Tier III engines to date.
"From a design perspective, the Caterpillar SCR solution has held up quite well," Turner says.
The 1-2-3 of SCR
The beauty of our Selective Catalytic Reduction (SCR) system is that it's not complicated. It doesn't affect engine efficiency and durability like other emissions-reduction solutions. There's no alteration to core engine components and no increase in the injector, in cylinder pressure or in heat rejection. Maintenance is simple, with long life to overhaul, and installation flexes with your vessel design. Best of all, our marine engine Tier 4 Final solution improves fuel efficiency, lowering your costs. Here's how it works in three simple steps:
1. The dosing cabinet mixes the right dosage of compressed air (1A) and Diesel Exhaust Fluid (1B).
2. That mixture is transferred to the SCR module (2A) where it's injected into the exhaust stream (2B).
3. Water evaporates and Diesel Exhaust Fluid is converted into ammonia. The ammonia comes in contact with the SCR catalyst to reduce NOx. The final output is carbon dioxide, nitrogen, water and oxygen.

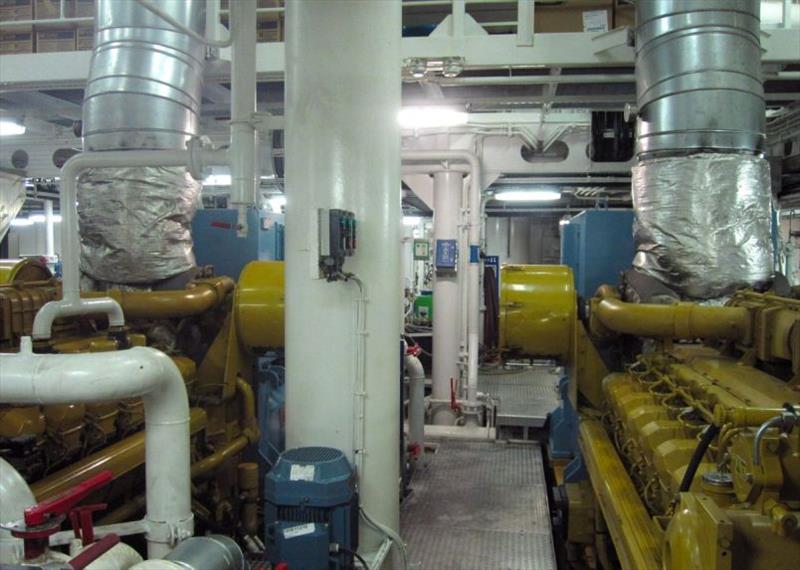

Go inside a working tug engine room to see our Selective Catalytic Reduction (SCR) aftertreatment installed.
