Out of curiosity how do you go about producing a female mould for foils? I understand how to produce foils from a male blank but not how to from a female mould.
Any enlightenment woukd be great Dan |
|
|
Laser 184084
Tasar 3501 RS600 698 RS600 782 |
|
 |
|
|
craiggo
Really should get out more
Joined: 01 Apr 04 Location: United Kingdom Online Status: Offline Posts: 1810 |
Post Options
Quote Reply
Posted: 22 Mar 12 at 10:59pm |
|
Machine them preferably out of something with similar coefficients of expansion to the proposed foil material.
Invar is a particularly good material if foils are to be Carbon. |
|
|
|
|
alstorer
Really should get out more
Joined: 02 Aug 07 Location: Cambridge Online Status: Offline Posts: 2899 |
Post Options
Quote Reply
Posted: 23 Mar 12 at 7:03am |
|
or form a female mould from a pattern part using expensive composite tooling materials. As well as having a well matched coefficient of thermal expansion, it needs to be able to withstand higher temperatures than you plan on curing at. (I'm not actually suggesting HexTool for this sort of thing, just showing the sort of thing that exists) |
|
|
-_
Al |
|
|
|
|
Oatsandbeans
Far too distracted from work
Joined: 19 Sep 05 Location: United Kingdom Online Status: Offline Posts: 382 |
Post Options
Quote Reply
Posted: 23 Mar 12 at 7:19am |
|
Al, what is this Hextool stuff then. I had a look at the link and it didn't explain what it was. Is it a short fibre sheet a bit like Hexfit or something else?
|
|
|
|
|
olly_love
Really should get out more
Joined: 18 Jan 05 Location: United Kingdom Online Status: Offline Posts: 1145 |
Post Options
Quote Reply
Posted: 23 Mar 12 at 8:14am |
|
we use it here with our 5 axis machine, it requires a very light sand with 1200 grit then a polish and ready for moulding.
very expensive say £800 quid for a 1x1 sheet by 50 thk, but you save on the prep time also depends on what grade you use |
|
|
TWO FRANK-Hunter Impala
|
|
|
|
|
alstorer
Really should get out more
Joined: 02 Aug 07 Location: Cambridge Online Status: Offline Posts: 2899 |
Post Options
Quote Reply
Posted: 23 Mar 12 at 8:27am |
|
similar to Hexfit, but optimised for tooling purposes. If you click on the links on the left, you'll get all the data (and even vidoes) with regards the two varients
(I work for Hexcel, but I'm not in a sales role)
|
|
|
-_
Al |
|
|
|
|
robinft
Far too distracted from work
Joined: 18 Jun 04 Location: Thorpe Bay YC Online Status: Offline Posts: 252 |
Post Options
Quote Reply
Posted: 23 Mar 12 at 10:11am |

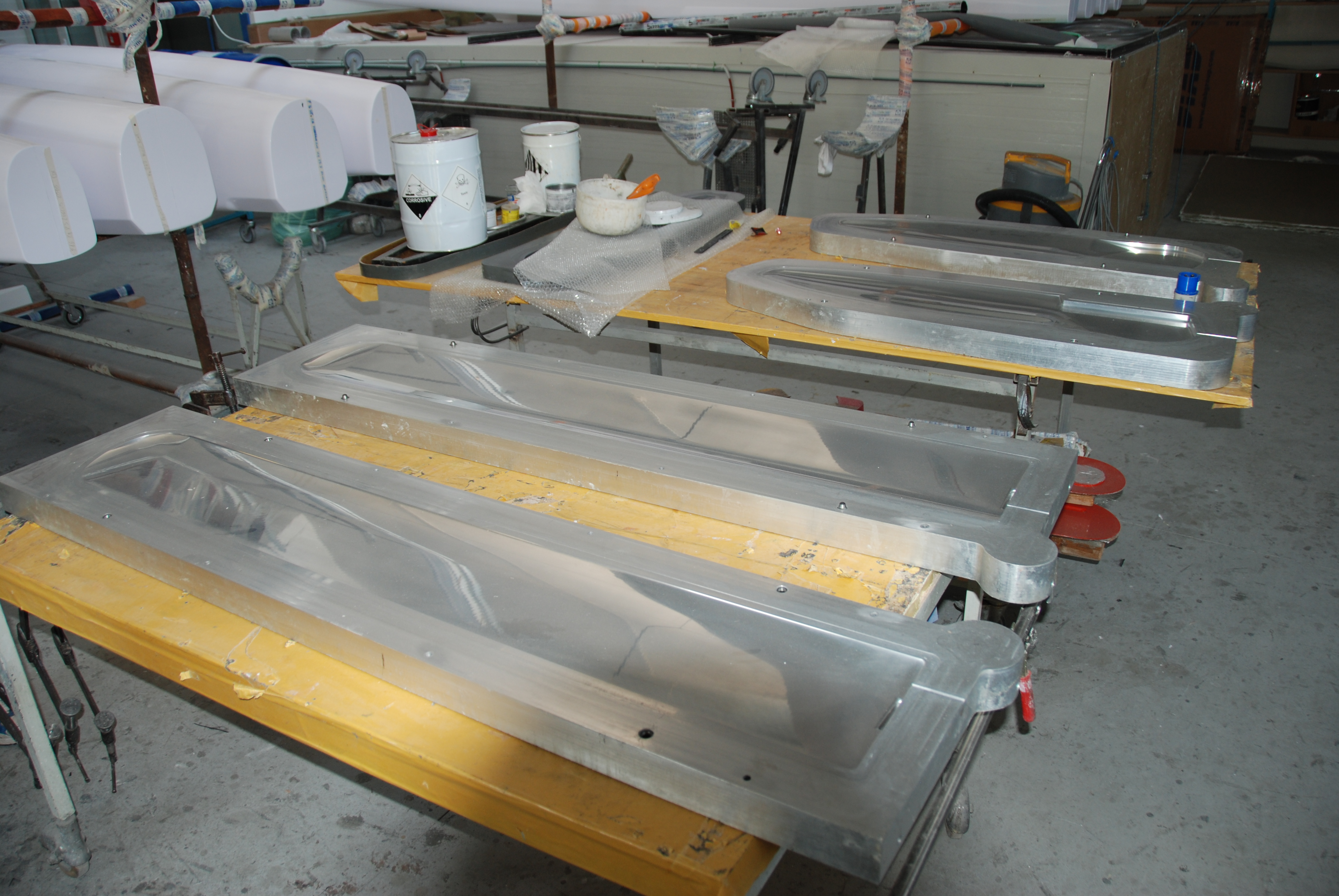

 CNC machined aluminium female moulds used at Bimare: |
|
|
Laser number 9
|
|
|
|
|
timnoyce
Really should get out more
Joined: 05 Aug 04 Location: Hampshire Online Status: Offline Posts: 1991 |
Post Options
Quote Reply
Posted: 23 Mar 12 at 10:49am |
Very nice indeed.
|
|
|
BEARFOOT DESIGN
Cherub 2648 - Comfortably Numb |
|
|
|
|
