broken daggerboard

some

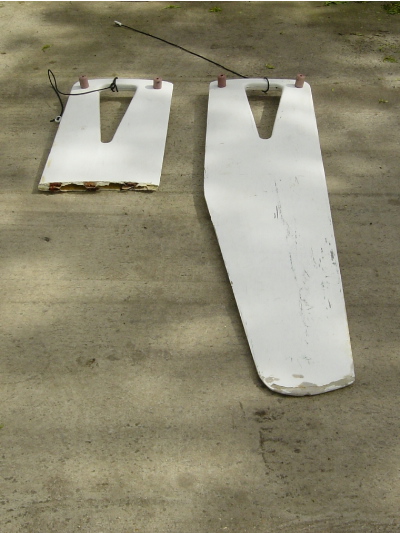

   snapped a dagger board on our old C-Class cat yesterday screaming along at 20knots and all of a sudden bang followed by a shudder thought what the hell was that looked up at the rig expecting the worst but couldn't see anything amiss ( we where struggling back across the solent in what we later found out was 28 to 30 knots of wind that was gusting to nearly 40 knots ) it was only when we got back to Calshot that we realised we now had a very short board.

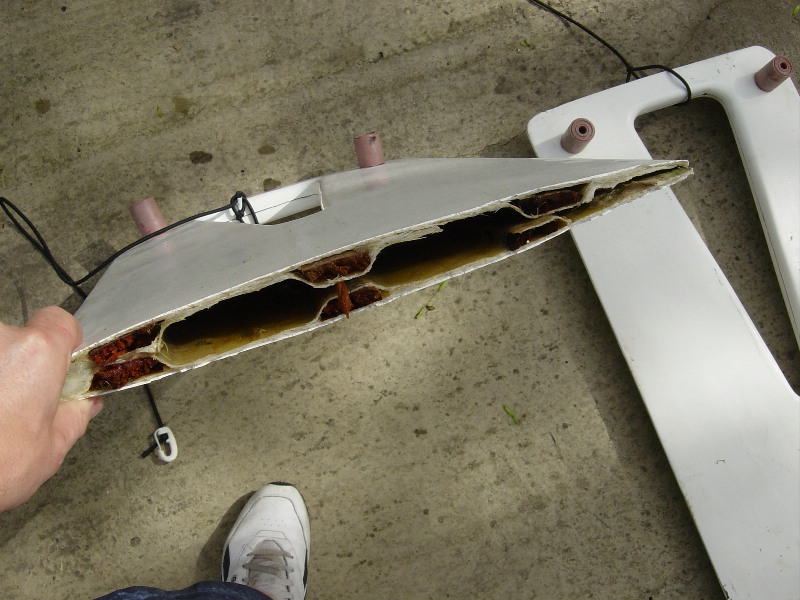

Anyway the daggerboards are Grp moulded using chopped mat with wooden strengthening battens, I can take a pair of moulds from our surviving board easily enough but would like some advice on strengthening the design as the other board is cracked as well ( PS they are 6ft long)

Author	Message Share Topic Printable Version Delicious Digg Facebook Furl Google MySpace Newsvine reddit StumbleUpon Translate Twitter Windows Live Yahoo Bookmarks Topic Search Topic Options Post Reply Create New Topic
ModifiedC-Class Send Private Message Find Member's Posts Newbie Joined: 11 Apr 06 Location: United Kingdom Online Status: Offline Posts: 23	Post Options Post Reply Quote ModifiedC-Class Report Post Quote Reply Topic: broken daggerboard Posted: 19 May 06 at 4:30pm
	snapped a dagger board on our old C-Class cat yesterday screaming along at 20knots and all of a sudden bang followed by a shudder thought what the hell was that looked up at the rig expecting the worst but couldn't see anything amiss ( we where struggling back across the solent in what we later found out was 28 to 30 knots of wind that was gusting to nearly 40 knots ) it was only when we got back to Calshot that we realised we now had a very short board. Anyway the daggerboards are Grp moulded using chopped mat with wooden strengthening battens, I can take a pair of moulds from our surviving board easily enough but would like some advice on strengthening the design as the other board is cracked as well ( PS they are 6ft long)
	I refuse to tip toe gently through life only to arrive safely at death

Isis Send Private Message Find Member's Posts Visit Member's Homepage Really should get out more Joined: 01 Sep 05 Online Status: Offline Posts: 2753	Post Options Post Reply Quote Isis Report Post Quote Reply Posted: 19 May 06 at 5:02pm
	Initial impression is that the flaw lays with the fact there seems to be a bit too much chopped strand in your carbon layup...

Jack Sparrow Send Private Message Find Member's Posts Visit Member's Homepage Really should get out more Joined: 08 Feb 05 Location: United Kingdom Online Status: Offline Posts: 2965	Post Options Post Reply Quote Jack Sparrow Report Post Quote Reply Posted: 19 May 06 at 5:10pm
	Make it out of foam with some carbon stringers. Or infact make it out of foam with anything but chopped strand mat! go here for a bit more info and some nice How To Do it Videos..... http://www.sailingsource.com/cherub/chframe.php?menu=build or you could PM me and I'll send you the mpeg if the website ones are to small.
	Farr 3.7 Class Website Farr 3.7 Building - Facebook Group

Captain Aris Send Private Message Find Member's Posts Visit Member's Homepage Newbie Joined: 02 Jun 06 Location: Greece Online Status: Offline Posts: 12	Post Options Post Reply Quote Captain Aris Report Post Quote Reply Posted: 02 Jun 06 at 11:40pm
	It looks like the wood is there not so much as added strength as for shaping the internal ribs which give the dagger board extra stiffness. In view of your experience I would mould the new daggerboard with roving or glass cloth rather than chopped mat. At least some glass cloth on the outer surfaces. And I would make the walls a bit thicker than they are. I think it is also a good idea if you can manage to get the internal ribs to meet exactly along the center line.
	Beware of more sail than ballast. My Site e-mail
