Boatboy
Newbie
Joined: 27 Mar 04 Location: United Kingdom Online Status: Offline Posts: 15 |
 Post Options
 Quote Reply
 Topic: Carbon Fibre SheetsPosted: 09 May 06 at 1:28am |
|
silly question did you use epoxy or polyester resin for the choppy as epoxy resin wont breakdown the binder and you may have built in a weak point in the structure bb |
|
 |
|
|
Strawberry
Really should get out more
Joined: 21 Jun 05 Location: United Kingdom Online Status: Offline Posts: 1337 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 4:50pm |
|
It's a hard life! |
|
|
Cherub 2649 "Dangerous Strawberry
|
|
|
|
|
Garry
Really should get out more
Joined: 18 Apr 04 Location: United Kingdom Online Status: Offline Posts: 536 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 4:40pm |
|
I had to drink the wine so I could use the box
|
|
|
Garry
Lark 2252, Contender 298 www.cuckoos.eclipse.co.uk |
|
|
|
|
Strawberry
Really should get out more
Joined: 21 Jun 05 Location: United Kingdom Online Status: Offline Posts: 1337 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 2:48pm |
|
Good work. Now time for avacado and a bottle of wine! Maybe book some theatre tickets too.
|
|
|
Cherub 2649 "Dangerous Strawberry
|
|
|
|
|
timnoyce
Really should get out more
Joined: 05 Aug 04 Location: Hampshire Online Status: Offline Posts: 1991 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 2:12pm |
|
looks good. tres bon
|
|
|
BEARFOOT DESIGN
Cherub 2648 - Comfortably Numb |
|
|
|
|
Garry
Really should get out more
Joined: 18 Apr 04 Location: United Kingdom Online Status: Offline Posts: 536 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 2:05pm |
|
Strong carboard box used to make up template. Plastic sheet taped over it so resin wouldn't stick.
2 layers 170 gsm carbon laid up at 45 degrees. Two layers of some CSM I had lyinging about and then 4 layers of carbon laid up with the weave running up/down. Used plastic sheet and block to squeeze out excess resin. Allowed to go off and then hacksaw used to cut off rough edges. Just need to grind chamfer on edges, drill holes and fit. |
|
|
Garry
Lark 2252, Contender 298 www.cuckoos.eclipse.co.uk |
|
|
|
|
Isis
Really should get out more
Joined: 01 Sep 05 Online Status: Offline Posts: 2753 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 1:30pm |
|
Looks good!
How did you decide to do it in the end? |
|
|
|
|
Garry
Really should get out more
Joined: 18 Apr 04 Location: United Kingdom Online Status: Offline Posts: 536 |
Post Options
Quote Reply
Posted: 22 Apr 06 at 1:18pm |
|

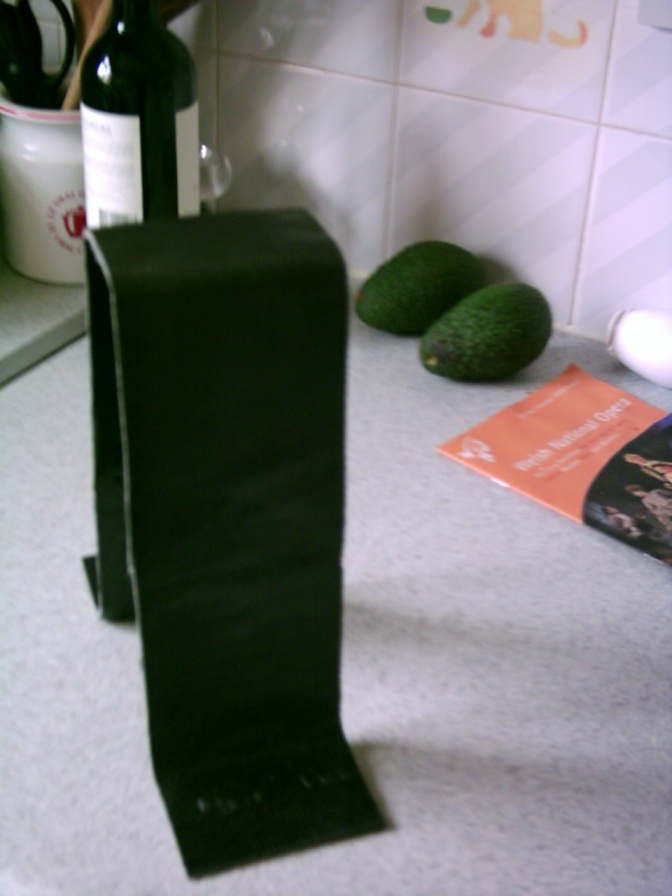

Thanks to everyone for their help and advice. Nearly finished project is below.
 Edited by Garry |
|
|
Garry
Lark 2252, Contender 298 www.cuckoos.eclipse.co.uk |
|
|
|
|
Isis
Really should get out more
Joined: 01 Sep 05 Online Status: Offline Posts: 2753 |
Post Options
Quote Reply
Posted: 14 Mar 06 at 1:17pm |
|
Peel ply is near enough to the stuff they line suits/dresses with... layed over the laminate and then ripped off when cured will give you a much better finish and help with squeezing excess resin out giving you a lighter end product.
|
|
|
|
|
JimC
Really should get out more
Joined: 17 May 04 Location: United Kingdom Online Status: Offline Posts: 6661 |
Post Options
Quote Reply
Posted: 14 Mar 06 at 1:16pm |
|
Peel ply is a sort off open weave nylon cloth, which doesn't stick to the laminate. It soaks up the excess resin and when everything is cured you peel it off, and are left with a even, if patterned finish, which is also suitable for gluing more epoxy on top of without further preparation.
|
|
|
|
|
