I'm kinda mulling over the possibility of building a new boat. Thinking about internal layout for the chronologically challenged singlehander...



- foredeck/crewdeck comes to well behind daggerboard case. The last part acts like a thwart, but goes gunwhale to gunwhale merging with side deck so helm can sit in the middle in light airs with feet in well and slide out as required

- folding mini winglets for decent righting moment upwind. They pivot for storage and not to stick in water (from European Canoe Classes)

- all tanks above false floor probably vented to fill slowly/drain moderately quickly. (water ballast on lee side when righting as well as float low in sustained capsize).

- Thinking about a Moth sized rig on a slim 15ft hull to achieve similar static stability to Aero.

Back to Top
craiggo View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 01 Apr 04
Location: United Kingdom
Online Status: Offline
Posts: 1810 		Post Options Post Options   Quote craiggo Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jun 16 at 7:12pm
There has to be a better way of getting righting moment Jim. That solution just looks too Heath Robinson.

Surely you want a longer, narrower hull with form stability but minimal drag, with a relatively small but efficient rig? Sort of a single-handed version of the American Suicide class?
OK 2129
RS200 411
Back to Top
realnutter View Drop Down
Posting king
Posting king


Joined: 17 Nov 15
Location: Reading, UK
Online Status: Offline
Posts: 129 		Post Options Post Options   Quote realnutter Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jun 16 at 10:07pm
Are you not just redesigning the ToY?
Back to Top
Riv View Drop Down
Far too distracted from work
Far too distracted from work


Joined: 23 Nov 13
Location: South Devon
Online Status: Offline
Posts: 353 		Post Options Post Options   Quote Riv Quote  Post ReplyReply Direct Link To This Post Posted: 01 Jun 16 at 10:33pm
I really like the canoe wings, saw one of them ages ago and thought it a good idea. I seriously thought about fitting some to my Finn.

Really length depends on the build space. For a standard 17ft garage 15ft sounds good.
Back to Top
Chris 249 View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 10 May 04
Online Status: Offline
Posts: 2041 		Post Options Post Options   Quote Chris 249 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 3:27am
Originally posted by Riv

I really like the canoe wings, saw one of them ages ago and thought it a good idea. I seriously thought about fitting some to my Finn.



So did the Finn class secretary, 50 years ago. It would have been interesting to see if others had followed his lead.
Back to Top
Do Different View Drop Down
Really should get out more
Really should get out more


Joined: 26 Jan 12
Location: North
Online Status: Offline
Posts: 1312 		Post Options Post Options   Quote Do Different Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 8:20am
Thoughtful tank design  Thumbs Up
Liking a lot, length brings the characteristics I like. I guess with your background you are all over dealing with the problems of to much wetted area in light weather.
Just curious, do you have a type of waters in mind, inland, sea, tidal estuary, short waves, long waves?
Back to Top
JimC View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 May 04
Location: United Kingdom
Online Status: Offline
Posts: 6662 		Post Options Post Options   Quote JimC Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 9:42am
I haven't thought too much about underwater shape yet.
But I've been very pleased with my reworked early 1970s International Moth, which seems to have been transformed in light air without too much of a penalty in breeze.
With the Moth it had had a new underwater shape at some time, which needed replacing. Not wanting to produce too much of an anachronism, I took a section shape I worked out in the 70s for a Cherub, and grafted it into what seemed like a reasonable rocker curve. Its flat along the centreline, transforming to a U section forward.
What's interesting about it is that best ultra light conditions performance seems to be with boat bolt upright, which is a bit different!
Back to Top
423zero View Drop Down
Really should get out more
Really should get out more


Joined: 08 Jan 15
Location: United Kingdom
Online Status: Offline
Posts: 3420 		Post Options Post Options   Quote 423zero Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 10:50am
Side tanks on slides, when capsized underwater tank pushes out, or even lee tank extends whilst sailing
Back to Top
Jack Sparrow View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 08 Feb 05
Location: United Kingdom
Online Status: Offline
Posts: 2965 		Post Options Post Options   Quote Jack Sparrow Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 12:15pm
Originally posted by JimC

I'm kinda mulling over the possibility of building a new boat. Thinking about internal layout for the chronologically challenged singlehander...



- foredeck/crewdeck comes to well behind daggerboard case. The last part acts like a thwart, but goes gunwhale to gunwhale merging with side deck so helm can sit in the middle in light airs with feet in well and slide out as required

- folding mini winglets for decent righting moment upwind. They pivot for storage and not to stick in water (from European Canoe Classes)

- all tanks above false floor probably vented to fill slowly/drain moderately quickly. (water ballast on lee side when righting as well as float low in sustained capsize).

- Thinking about a Moth sized rig on a slim 15ft hull to achieve similar static stability to Aero.

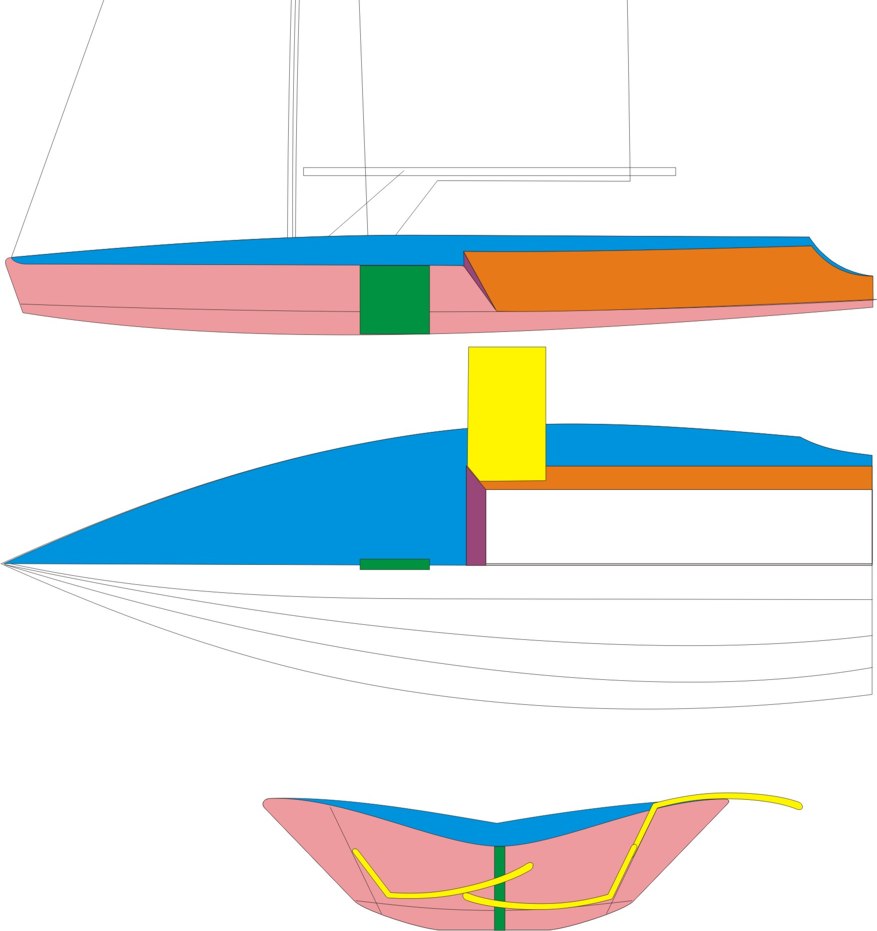

I see your internal layout issues here, as your folding wings will hinder normal control line placement. I think you have to have a triangular tunnel behind the king post, curved to meet the shape of your winglets when inboard with the control lines running out aft of this tunnel, and then splitting to your decks or single lines on swinging cleats. The winglets will lie higher up against the tunnel than you show in your drawing. Does that make sense? Nice idea BTW Jim.
Farr 3.7 Class Website
Farr 3.7 Building - Facebook Group
Back to Top
JimC View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 May 04
Location: United Kingdom
Online Status: Offline
Posts: 6662 		Post Options Post Options   Quote JimC Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 12:40pm
Control lines is an issue. I usually have a bracket in the middle of the boat, but that would totally stuff up my slide across layout.

I kinda wonder about running the purchases forward along the centreline of the low deck, then back, maybe to cleats each side of daggerboard. Expensive in blocks, but there'd be room for a lot of throw, and maybe it could be all cascade to gain a couple of blocks back.

Maybe something like this...
