Singlehander Layout Ideas
 Post Reply Post Reply Page  <1234 7>
Author
  Share Topic Share Topic  Topic Search Topic Search  Topic Options Topic Options
fab100 View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 15 Mar 11
Online Status: Offline
Posts: 1005 		Post Options Post Options   Quote fab100 Quote  Post ReplyReply Direct Link To This Post Topic: Singlehander Layout Ideas
    Posted: 02 Jun 16 at 12:52pm
I cannot work out how the toestraps and hiking works on those folding winglets. And I have enough trouble getting out on the other side in a windy tack without having to fold a wing in and launch another outwards, so you are obviously far ahead of me.
Great book for Club Sailors here
Back to Top
JimC View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 May 04
Location: United Kingdom
Online Status: Offline
Posts: 6662 		Post Options Post Options   Quote JimC Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 1:07pm
Toe straps in much the same place. Just think of it as a wide sidedeck.
They're left folded out while sailing.



Edited by JimC - 02 Jun 16 at 1:07pm
Back to Top
Presuming Ed View Drop Down
Really should get out more
Really should get out more


Joined: 26 Feb 05
Location: United Kingdom
Online Status: Offline
Posts: 641 		Post Options Post Options   Quote Presuming Ed Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 1:55pm
Is the plan to have them on tracks, sliding fore and aft?
Back to Top
gordon1277 View Drop Down
Really should get out more
Really should get out more


Joined: 24 Mar 10
Location: United Kingdom
Online Status: Offline
Posts: 665 		Post Options Post Options   Quote gordon1277 Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 1:58pm
Hi Jim
You could set the control lines behind the mast like the Phantom with the Adj forestay, Lowers etc taken forward a bit like your drawing.
Then have just the tails taken back for you to play with.
Are you planing a assymetric spinnaker like a canoe?
Cheers
Gordon
Gordon
Lossc
Back to Top
Guests View Drop Down
Guest Group
Guest Group
Post Options Post Options   Quote Guests Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 2:25pm
What dinghy is that?


Originally posted by JimC

Toe straps in much the same place. Just think of it as a wide sidedeck.
They're left folded out while sailing.

Back to Top
JimC View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 May 04
Location: United Kingdom
Online Status: Offline
Posts: 6662 		Post Options Post Options   Quote JimC Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 2:48pm
Originally posted by Presuming Ed

Is the plan to have them on tracks, sliding fore and aft?
No, fixed position.
Originally posted by gordon1277

Are you planning a assymetric spinnaker like a canoe?
No kite, no rig adjustment.
Originally posted by SimonW99

What dinghy is that?

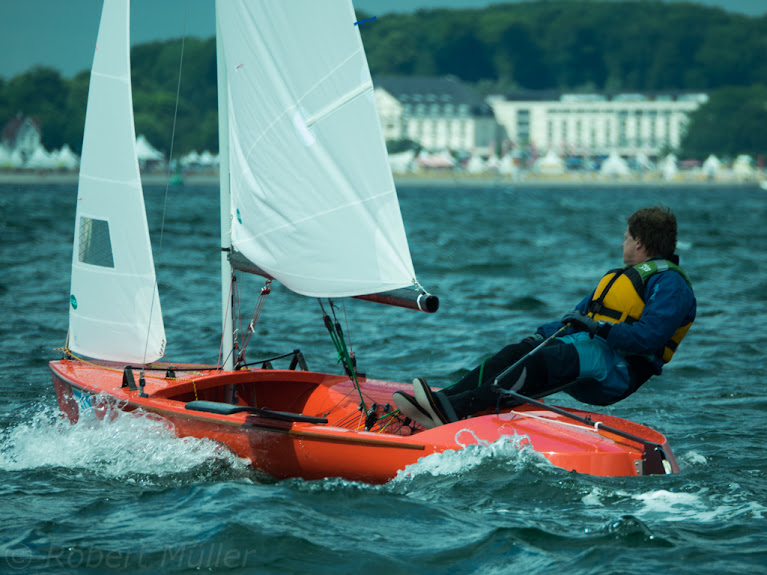

Canoe in fact. Taifun. Its a German class. There are broadly similar canoe classes in Sweden.
Back to Top
realnutter View Drop Down
Posting king
Posting king


Joined: 17 Nov 15
Location: Reading, UK
Online Status: Offline
Posts: 129 		Post Options Post Options   Quote realnutter Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 2:56pm
Proper pivoting centreboard, please!!!

And how about a self-tacking jib?
Back to Top
Jack Sparrow View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 08 Feb 05
Location: United Kingdom
Online Status: Offline
Posts: 2965 		Post Options Post Options   Quote Jack Sparrow Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 6:05pm
Originally posted by JimC

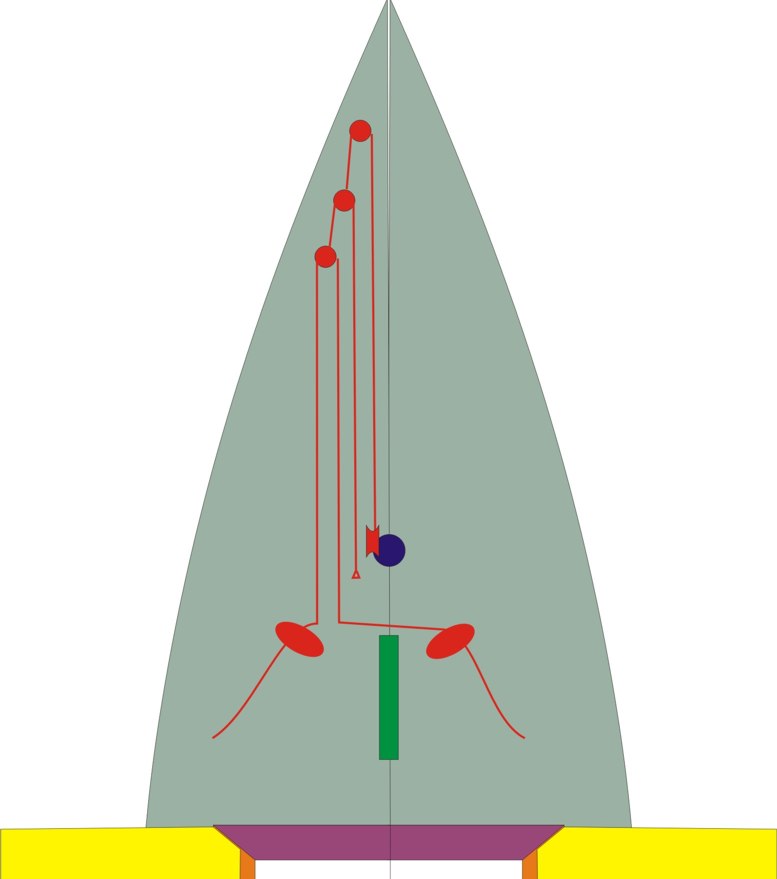

Control lines is an issue. I usually have a bracket in the middle of the boat, but that would totally stuff up my slide across layout.

I kinda wonder about running the purchases forward along the centreline of the low deck, then back, maybe to cleats each side of daggerboard. Expensive in blocks, but there'd be room for a lot of throw, and maybe it could be all cascade to gain a couple of blocks back.

Maybe something like this...

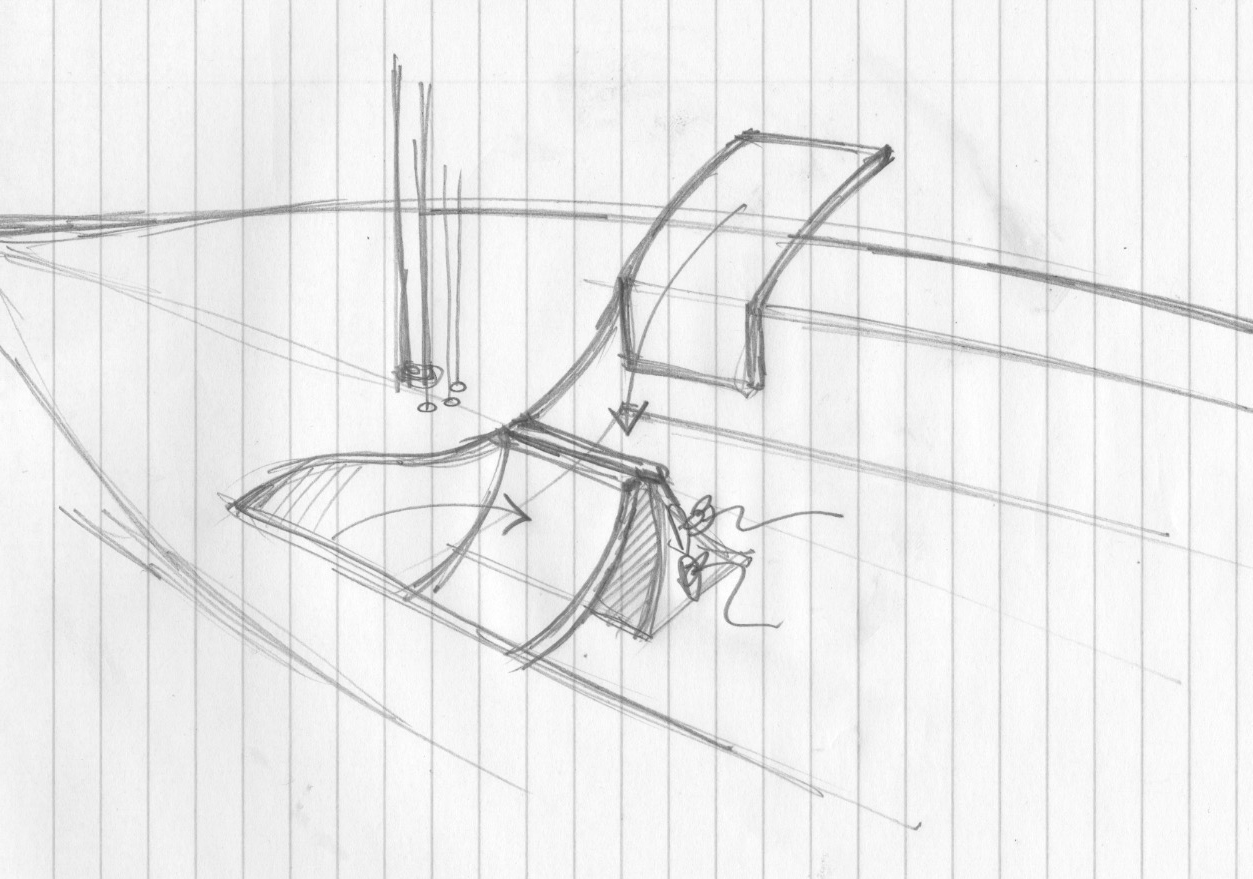

This what I meant... not sure if I've interpreted your design properly?
Farr 3.7 Class Website
Farr 3.7 Building - Facebook Group
Back to Top
craiggo View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 01 Apr 04
Location: United Kingdom
Online Status: Offline
Posts: 1810 		Post Options Post Options   Quote craiggo Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 6:47pm
I don't get the issue. Surely your control line layout could be like most OKs running above the deck. Also with the depth of structure in the bow, why have shrouds?
OK 2129
RS200 411
Back to Top
JimC View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 May 04
Location: United Kingdom
Online Status: Offline
Posts: 6662 		Post Options Post Options   Quote JimC Quote  Post ReplyReply Direct Link To This Post Posted: 02 Jun 16 at 7:04pm
My thought is the crew deck/foredeck coming to about a foot aft of the back of the daggerboard so you sit on it in light airs and have no transition between sitting in middle of boat and sitting on side.

Its an interesting thought though: if the bow tank is going to be slow flooding/self draining then control lines can run in there because there's no concern about water ingress. Access for maintenance would need careful thought!

I don't much like unstayed masts. Weight/stability penalty.
Back to Top
