Originally posted by G.R.F.

Originally posted by JimC


GRF, you'll just have to face it, you are becoming a dinghy sailor.
  Confused

Nope,
I'd say you've got the bug pretty badly. Before you know it the weight of blocks and lines will be almost as much as the weight of the boat itself. Peer into a Merlin, 5o5 etc at the dinghy show to see where your future lies.
(interestingly, there's an odd level of crossover in people between the stringtastic merlins and the "clean" B14, showing that stringitis is not entirely debilitating but can be contaiguous).
-_
Al
Back to Top
JohnW View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 Jul 07
Location: United Kingdom
Online Status: Offline
Posts: 552 		Post Options Post Options   Quote JohnW Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 11:20am
Originally posted by getafix

Originally posted by JohnW

As You have had ideas from the Merlins, I thought I would throw in the arrangement that I have on my Albacore, (you know you love them!  Tongue)

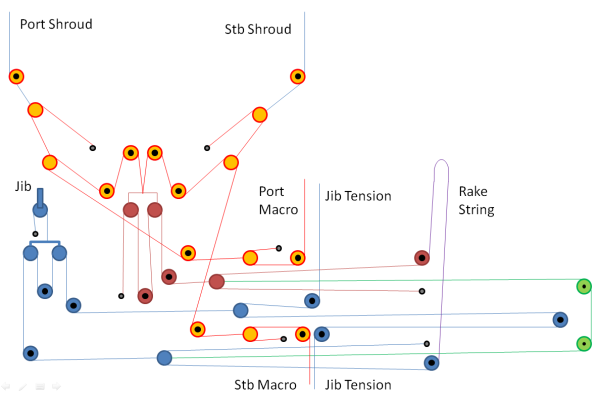

I have a single string that adjusts the jib halyard and both shrouds together to control rake, as well as the option to adjust each individually:





Blocks with black centres are fixed, others are running.  The first stage of each cascade (at least) need to to be high tension blocks for example the ones on this page:

To do the single string rake control, you need to know the velocity ratio of your shrouds to your jib/forestay so the strings move the correct amount and retain the tension - On my boat it is 1:2 (as near as) which makes it easy.

Dont bother with muscle boxes (even if you can find them), too much friction for a given velocity ratio that a cascade.



nice one, but what does the green line do? i'm guessing it's shock cord.....

No, The green string has to be very low stretch - it is the key to the single string operation.
It couples the shroud adjustment to the jib halyard and maintains the rig tension when adjusting rake.  As the rake string pulls on the shrouds to increase rake the jib halyard is released proportionately maintaining rig tension.  Similarly to decrease rake the jib halyard is pulled on and the shrouds are eased.
Back to Top
G.R.F. View Drop Down
Really should get out more
Really should get out more


Joined: 10 Aug 08
Location: United Kingdom
Online Status: Offline
Posts: 4028 		Post Options Post Options   Quote G.R.F. Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 11:35am
[sybil faulty] On an Albacore [/sybil faulty]

Edited by G.R.F. - 17 Jan 12 at 11:35am
https://www.ease-distribution.com/
Back to Top
JohnW View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 17 Jul 07
Location: United Kingdom
Online Status: Offline
Posts: 552 		Post Options Post Options   Quote JohnW Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 11:41am
Originally posted by G.R.F.

[sybil faulty] On an Albacore [/sybil faulty]
LOL

<Basil Fawlty> Next contestant, Mrs. Sybil Fawlty GRF from Torquay Hythe. Specialist subject - the bleeding obvious. </Basil Fawlty>
Back to Top
zippyRN View Drop Down
Far too distracted from work
Far too distracted from work


Joined: 14 Sep 06
Online Status: Offline
Posts: 437 		Post Options Post Options   Quote zippyRN Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 2:23pm
Originally posted by alstorer

[
I'd say you've got the bug pretty badly. Before you know it the weight of blocks and lines will be almost as much as the weight of the boat itself. Peer into a Merlin, 5o5 etc at the dinghy show to see where your future lies.
(interestingly, there's an odd level of crossover in people between the stringtastic merlins and the "clean" B14, showing that stringitis is not entirely debilitating but can be contaiguous).


Merlin / 505 / stringtastic albacore is like a  gentleman's grand tourer , a tour de force of sophistication adjustability and bespokeness ...

a B14 or other such 'clean' skiffs is something like a bike engined caterham - you set it up and hen it goes like stink
Back to Top
getafix View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 28 Mar 06
Location: United Kingdom
Online Status: Offline
Posts: 2143 		Post Options Post Options   Quote getafix Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 2:51pm
Originally posted by zippyRN

Originally posted by alstorer

[
I'd say you've got the bug pretty badly. Before you know it the weight of blocks and lines will be almost as much as the weight of the boat itself. Peer into a Merlin, 5o5 etc at the dinghy show to see where your future lies.
(interestingly, there's an odd level of crossover in people between the stringtastic merlins and the "clean" B14, showing that stringitis is not entirely debilitating but can be contaiguous).


Merlin / 505 / stringtastic albacore is like a  gentleman's grand tourer , a tour de force of sophistication adjustability and bespokeness ...

a B14 or other such 'clean' skiffs is something like a bike engined caterham - you set it up and hen it goes like stink


you can't even remotely claim to love string and multi-purchase systems if you've never owned an FD, the absolute, hands down, stringiest stringtastic boats ever.... 16:1 cascade adjuster on the road trailer please .....phwor love it!!
Back to Top
G.R.F. View Drop Down
Really should get out more
Really should get out more


Joined: 10 Aug 08
Location: United Kingdom
Online Status: Offline
Posts: 4028 		Post Options Post Options   Quote G.R.F. Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 2:56pm
Originally posted by zippyRN



Merlin / 505 / stringtastic albacore is like a  gentleman's grand tourer
https://www.ease-distribution.com/
Back to Top
2547 View Drop Down
Really should get out more
Really should get out more


Joined: 11 Aug 11
Online Status: Offline
Posts: 1151 		Post Options Post Options   Quote 2547 Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 3:10pm
Originally posted by rogue

Originally posted by JimC

Ah, I see what's happening now. GRF: you have a nasty case of stringitis.

I sailed an Etchells once... it had a fine tuner on the jib car.

The reason Graeme is going on about so much tweaking (from the same keyboard that ridicules the tweaker classes).... well, it keeps the dreaded thing off the water for just a while longer, thus delaying the inevitable D-Day when he realises it a) sucks and b) cost him his pension to find it out.  LOL

Sounds about right; most excellent breakthrough products are simple; the V Turd is not simple ....
Back to Top
ex laser View Drop Down
Really should get out more
Really should get out more


Joined: 25 Mar 09
Online Status: Offline
Posts: 725 		Post Options Post Options   Quote ex laser Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 3:12pm
g.r.f.

must be an old photo, because you look quite young in it! Wink
Back to Top
RS400atC View Drop Down
Really should get out more
Really should get out more


Joined: 04 Dec 08
Online Status: Offline
Posts: 3011 		Post Options Post Options   Quote RS400atC Quote  Post ReplyReply Direct Link To This Post Posted: 17 Jan 12 at 6:33pm
Originally posted by JohnW

Originally posted by getafix

Originally posted by JohnW

As You have had ideas from the Merlins, I thought I would throw in the arrangement that I have on my Albacore, (you know you love them!  Tongue)

I have a single string that adjusts the jib halyard and both shrouds together to control rake, as well as the option to adjust each individually:





Blocks with black centres are fixed, others are running.  The first stage of each cascade (at least) need to to be high tension blocks for example the ones on this page:

To do the single string rake control, you need to know the velocity ratio of your shrouds to your jib/forestay so the strings move the correct amount and retain the tension - On my boat it is 1:2 (as near as) which makes it easy.

Dont bother with muscle boxes (even if you can find them), too much friction for a given velocity ratio that a cascade.



nice one, but what does the green line do? i'm guessing it's shock cord.....

No, The green string has to be very low stretch - it is the key to the single string operation.
It couples the shroud adjustment to the jib halyard and maintains the rig tension when adjusting rake.  As the rake string pulls on the shrouds to increase rake the jib halyard is released proportionately maintaining rig tension.  Similarly to decrease rake the jib halyard is pulled on and the shrouds are eased.


On a Merlin, the one string raking can also adjust lowers, puller and kicker!
