Block Arrangements for shrouds
 Post Reply Post Reply Page  <12345 10>
Author
  Share Topic Share Topic  Topic Search Topic Search  Topic Options Topic Options
Lukepiewalker View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 24 May 06
Location: United Kingdom
Online Status: Offline
Posts: 1341 		Post Options Post Options   Quote Lukepiewalker Quote  Post ReplyReply Direct Link To This Post Topic: Block Arrangements for shrouds
    Posted: 16 Jan 12 at 1:19pm
You get high load or wire blocks for the business end, then you can downsize once you're into the cascade.
Ex-Finn GBR533 "Pie Hard"
Ex-National 12 3253 "Seawitch"
Ex-National 12 2961 "Curved Air"
Ex-Mirror 59096 "Voodoo Chile"
Back to Top
zippyRN View Drop Down
Far too distracted from work
Far too distracted from work


Joined: 14 Sep 06
Online Status: Offline
Posts: 437 		Post Options Post Options   Quote zippyRN Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 2:59pm
Originally posted by Lukepiewalker

You get high load or wire blocks for the business end, then you can downsize once you're into the cascade.

while i'm out of the loop  these days this is what  people always used to do

wire 2 or 3 :1  that the shroud clips to then lead to a cascade / 6:1 tackle or  muscle box.
Back to Top
fudheid View Drop Down
Far too distracted from work
Far too distracted from work
Avatar

Joined: 21 Apr 11
Location: 51.53 N 01.28 E
Online Status: Offline
Posts: 241 		Post Options Post Options   Quote fudheid Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 3:46pm
Originally posted by zippyRN

Originally posted by Lukepiewalker

You get high load or wire blocks for the business end, then you can downsize once you're into the cascade.

while i'm out of the loop  these days this is what  people always used to do

wire 2 or 3 :1  that the shroud clips to then lead to a cascade / 6:1 tackle or  muscle box.
that sounds like the system we had on our 505 back in the day.... fully adustable.
When it comes to rigging solo though it is nice to have a gate/hole to take the mast whilst you faff with shrouds etc....
but that is why you designed a two man boat so the crew can hold while you gently fit the spring clips etc Big smile
Cheers you

only me from over the sea......
Back to Top
G.R.F. View Drop Down
Really should get out more
Really should get out more


Joined: 10 Aug 08
Location: United Kingdom
Online Status: Offline
Posts: 4028 		Post Options Post Options   Quote G.R.F. Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 4:04pm
Originally posted by Lukepiewalker

You get high load or wire blocks for the business end, then you can downsize once you're into the cascade.

Pictures? Link? Don't see them on the wall of my local dinghy store..

A high load block on the end of the shrouds would make it easy to thread a lead through just to get the wire in place so I can then attach the forestay.

Originally posted by fudheid


When it comes to rigging solo though it is nice to have a gate/hole to take the mast whilst you faff with shrouds etc....
but that is why you designed a two man boat so the crew can hold while you gently fit the spring clips etc Big smile

Yes well, we all know the top didn't go the way I'd initially designed, got talked out of it probably for build expedience..
Having said that the way it's laid out with its massive kicker it would need a tiny crew to get through that bit now..
https://www.ease-distribution.com/
Back to Top
Steve H View Drop Down
Groupie
Groupie
Avatar

Joined: 29 Jun 06
Location: United Kingdom
Online Status: Offline
Posts: 48 		Post Options Post Options   Quote Steve H Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 4:15pm
Back to Top
Steve H View Drop Down
Groupie
Groupie
Avatar

Joined: 29 Jun 06
Location: United Kingdom
Online Status: Offline
Posts: 48 		Post Options Post Options   Quote Steve H Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 4:17pm
GRF, I know you wouldn't want to, but have you had a look at the photos on the Merlin web site. You might find one or two of the shrouds and lowers on the newer boats
Back to Top
Lukepiewalker View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 24 May 06
Location: United Kingdom
Online Status: Offline
Posts: 1341 		Post Options Post Options   Quote Lukepiewalker Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 4:17pm

http://www.pinbax.com/index.asp?selection=category&cg=7&mc=67&cct=4&TypeSearch=

Nowadays we tend to use 12 strand dyneema/spectra or vectran for the bit that used to be wire.
Ex-Finn GBR533 "Pie Hard"
Ex-National 12 3253 "Seawitch"
Ex-National 12 2961 "Curved Air"
Ex-Mirror 59096 "Voodoo Chile"
Back to Top
Lukepiewalker View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 24 May 06
Location: United Kingdom
Online Status: Offline
Posts: 1341 		Post Options Post Options   Quote Lukepiewalker Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 4:48pm

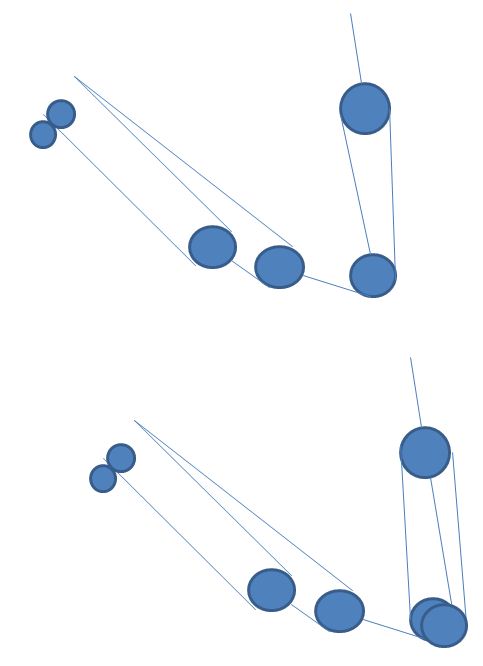

Shrouds
Ex-Finn GBR533 "Pie Hard"
Ex-National 12 3253 "Seawitch"
Ex-National 12 2961 "Curved Air"
Ex-Mirror 59096 "Voodoo Chile"
Back to Top
Lukepiewalker View Drop Down
Really should get out more
Really should get out more
Avatar

Joined: 24 May 06
Location: United Kingdom
Online Status: Offline
Posts: 1341 		Post Options Post Options   Quote Lukepiewalker Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 4:51pm
Hopefully those make sense. A lot of boats use through deck blocks for the shrouds but based on the picture you showed us it doesn't look like an option. You can increase the purchase by adding another block to the cascade.
Ex-Finn GBR533 "Pie Hard"
Ex-National 12 3253 "Seawitch"
Ex-National 12 2961 "Curved Air"
Ex-Mirror 59096 "Voodoo Chile"
Back to Top
G.R.F. View Drop Down
Really should get out more
Really should get out more


Joined: 10 Aug 08
Location: United Kingdom
Online Status: Offline
Posts: 4028 		Post Options Post Options   Quote G.R.F. Quote  Post ReplyReply Direct Link To This Post Posted: 16 Jan 12 at 5:16pm
M M M M Merlin  Shocked what do they use them for - Sash chords?

It's bad enough a couple of our lads have gone totally retarded and are threatening a Merlin, I can't be seen to be encouraging such foolishness, only in England and only wearing yellow rubber, please don't use such offensive suggestions to me again.. Wink

ER thank you Mr Piewalker think I have an idea forming now...


Edited by G.R.F. - 16 Jan 12 at 5:17pm
