Trapeze handles for singlehanded hooking in?

 Post Reply Post Reply
Author
fartymark View Drop Down
Newbie
Newbie


Joined: 10 Dec 06
Location: United Kingdom
Online Status: Offline
Posts: 8
Post Options Post Options   Quote fartymark Quote  Post ReplyReply Direct Link To This Post Topic: Trapeze handles for singlehanded hooking in?
    Posted: 12 Apr 16 at 3:23pm
Hi all,

At the moment I am designing some long handled trapeze rings, so that I can hook in (whilst hanging) with one hand.

Has anyone made any similar modifications or have any suggestions?

Thanks
Back to Top
PeterG View Drop Down
Really should get out more
Really should get out more


Joined: 12 Jan 08
Location: United Kingdom
Online Status: Offline
Posts: 561
Post Options Post Options   Quote PeterG Quote  Post ReplyReply Direct Link To This Post Posted: 12 Apr 16 at 3:40pm
You want tacking sticks. Some Contenders use them

There are instructions somewhere on the class website. I've never tried them, a friend who is a fair bit better Contender sailor than I am used them for one summer a few years back, and gave up after ending up in the water while the boat sailed on too many times! However, in the hands of those who make them work they work well.
Peter
Ex Cont 707
Laser 189635
DY 59
Back to Top
scarface View Drop Down
Newbie
Newbie


Joined: 18 Jan 16
Location: Stokes Bay
Online Status: Offline
Posts: 1
Post Options Post Options   Quote scarface Quote  Post ReplyReply Direct Link To This Post Posted: 12 Apr 16 at 6:00pm

I recommend making up some prototypes using plastic plumbing tube (or similar) available from Wickes, B&Q etc. If you buy a drill capable of making a hole of the same outside diameter as the tube you can easily modify some plastic disc handles to slide over the top and provide a handhold. Rope down the middle takes the load, use your existing hooks and the whole lot costs approx 5-10 plus drill, plastic handles, tape and rope.  You can then experiment with lengths and arrangements.  I kept a normal trapeze adjuster above the handle, but have seen alternative approaches turning the system upside-down and using kite-surfing clam cleats. Once made you can experiment by tying them up to some suitably high point (a tree, building, even a stairwell) then you can practice hanging off one arm and hooking on/off.

People have made beautiful custom carbon tacking sticks, but I never thought there was an appreciable performance benefit over simple plastic tube (less brittle too).  I recommend the Blue Peter approach before you commit to spending serious spondooleys.

I found them great for speeding up gybes (in a Musto Skiff) and allowed a slight increase in speed in tacking, but then I never felt comfortable with leaving the mainsheet cleated and committing to a full wire-to-wire tack (note: I tried them,  but reckoned 9 out of 10 was not good enough.  I think even a 5% failure rate will make it not worth it in terms of race results).  In summary if I went back to Mustos I would definitely build another set of tacking sticks.

Back to Top
Do Different View Drop Down
Really should get out more
Really should get out more


Joined: 26 Jan 12
Location: North
Online Status: Offline
Posts: 831
Post Options Post Options   Quote Do Different Quote  Post ReplyReply Direct Link To This Post Posted: 12 Apr 16 at 6:03pm
http://www.c2marine.co.uk/trapeze_handle.php

Ready made for your interest.

My mate made them work on a Contender, mind you he's a determined little devil and very willing to swim to win eventually. How much faster than a smooth operator using old school..................?

BTW. Their tiller extensions are the mutts nuts, exactly the right level of grip all the way down the shaft with no need to customise. I have them on both boats.
Back to Top
piglet View Drop Down
Far too distracted from work
Far too distracted from work


Joined: 04 Jan 07
Online Status: Offline
Posts: 418
Post Options Post Options   Quote piglet Quote  Post ReplyReply Direct Link To This Post Posted: 14 Apr 16 at 4:13pm
I had a go with them but gave it up, any small advantage over getting good at hoking on first was overshadowed by the irritaion of these things clanging around you ears all the time, and it made difficult to clip the elastics forward in the light stuff.
Back to Top
fartymark View Drop Down
Newbie
Newbie


Joined: 10 Dec 06
Location: United Kingdom
Online Status: Offline
Posts: 8
Post Options Post Options   Quote fartymark Quote  Post ReplyReply Direct Link To This Post Posted: 16 Apr 16 at 6:10pm

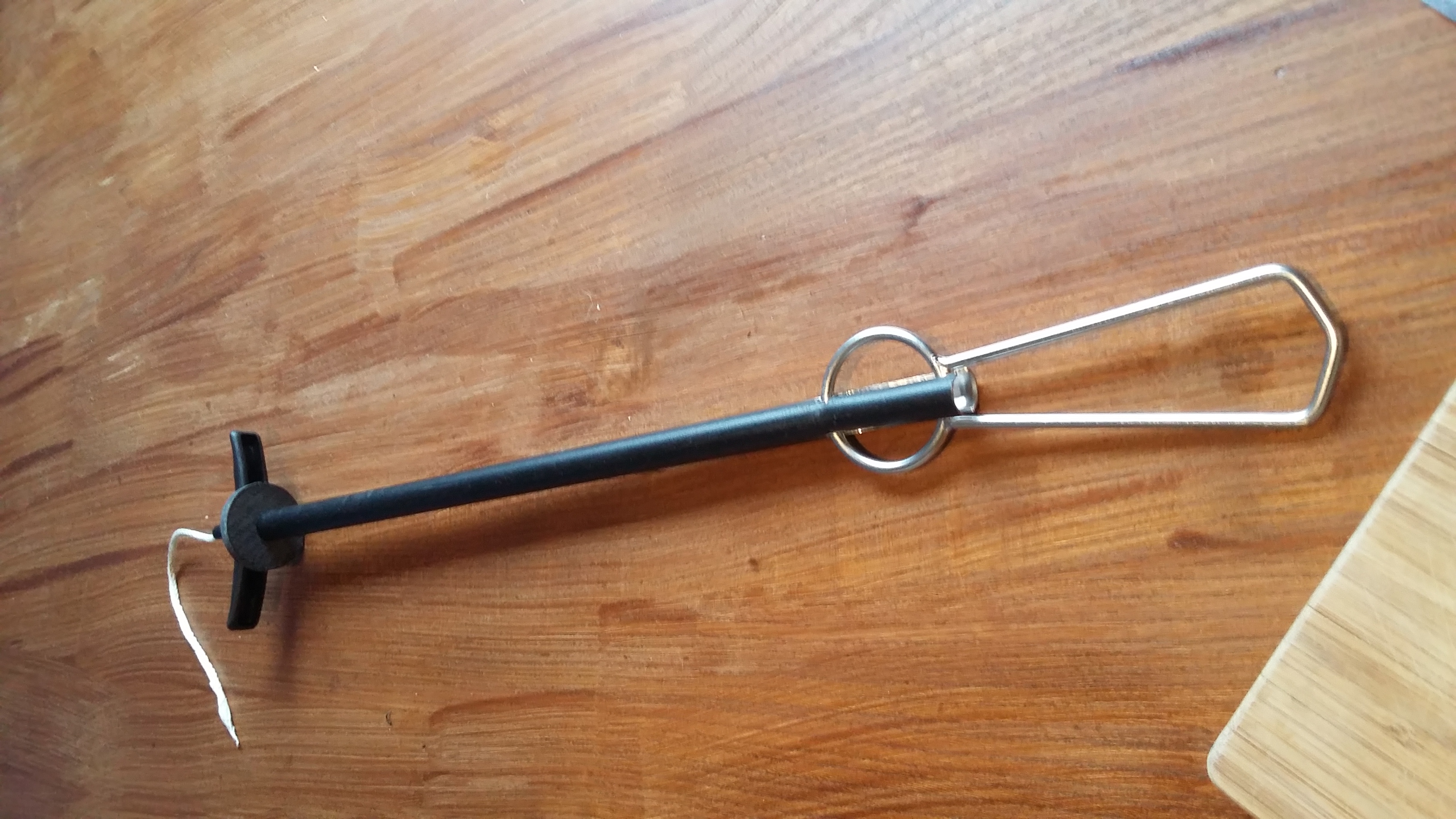

Thanks for all your advice. I have made some cheap early versions to try out this weekend :) hopefully they will speed up my tacking!
Back to Top
